產(chǎn)品名稱
402408ADWR6 T-Bar Steel Perforated Supply Diffuser with Adjustable Deflectors and R6 Insulation
產(chǎn)品型號
402408ADWR6
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-bar ceiling?
- Perforated faceplate
- Adjustable round deflectors
- With R6 insulation?
- Formed metal back panel?
- Accept model #403302 snap-in collar ring (6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish?
-

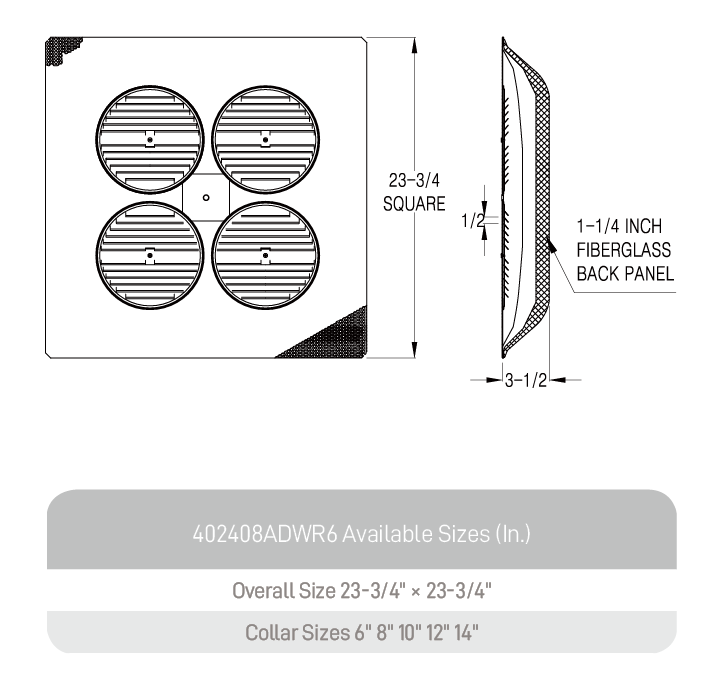

402408ADWR6 Drawing
下載文件
